Nikon D2 Underwater Camera Housings


Nexus D300s Housing Body

D300sSmall150
Nexus D300s Housing
(shown with optional
MP-50C-6 port)

The new Nexus D300s housing for the Nikon D300s series of Digital SLRs is now available. The D300 camera fits in the D300s housing body

but all the buttons on the camera do not line up with all the buttons on the housing back.

The earlier Nexus D300 housing is made to fit the Nikon D300 DSLR camera.

This light and compact D300s underwater camera housing is made from marine grade aluminum alloy.

Dimensions are 313mm x 178mm x 131mm (W/H/D). Weight is 4.59 lbs. in air. The housing is rated to 246 ft/ 75 m.




Nexus D300s Housing Features

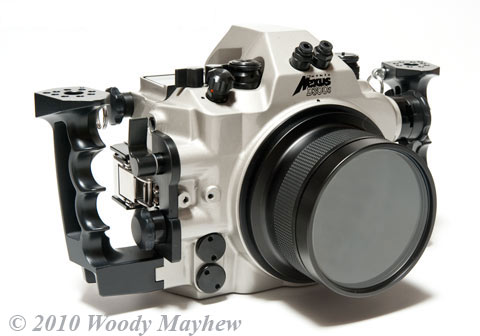

D300sFull480

The Nexus D300s housing body is equipped with:

Push Buttons or levers to access functions on the D300s camera:

New for D300s housing - Discrete Live View button on housing back to start up Live View on back panel of the camera body.

To start video recording, push the center button of the Multi-Control, and to stop video recording push the center button of the Multi Control again.

  1. Four corner Multi Selector control
  2. AF Area Mode Selector
  3. Monitor button for image review
  4. Menu button
  5. Thumbnail button
  6. Protect button (Key Icon button on camera)
  7. Enter button
  8. Focus Area Lock Switch
  9. Format/Delete button
  10. Shutter Release and AF Hold lever
  11. Mode Dial
  12. Metering Mode
  13. Exposure Compensation/Flash Mode button
  14. AE/AF Lock ISO, Qual, WB buttons on base of camera body
  15. Main Command knob
  16. Sub Command knob

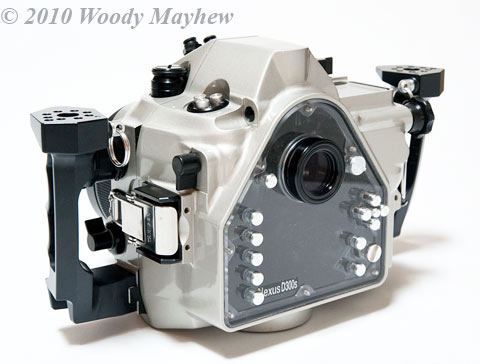

D300sRear480



Other features include:

  1. On/Off Button
  2. Aperture Knob (apertures are selected inside the camera body with this knob)
  3. Focus/Zoom knob with lockout for Autofocus when using a manual focus gear on the lens
  4. Twin TTL Strobe Sockets are standard equipment
  5. Optical pick-up finder to allow full, corner to corner view of the camera's viewfinder
    image and data
  6. Two External Accessory Ports
The Nexus D300s housing body comes with:
  1. Attached Handles
  2. Wrench Set
  3. Hot shoe TTL cable
  4. O-ring Grease
  5. Spare Body O-ring
  6. Operator's Manual
  7. Warranty

Nexus D300s housing body price - $3850.00

New Inon Rotateable Optical 45° or Straight Viewfinders are available as a retrofit for the D300s housing body - Now User Installable - $855.00ea

Contact Nexus America for additional information or to purchase a Nexus D300s Housing from this site.


Visit the MultiPort Page for descriptions and photos of the Nexus Multi Ports.
